PRODUCTS-WIG Machinery Co.,Ltd

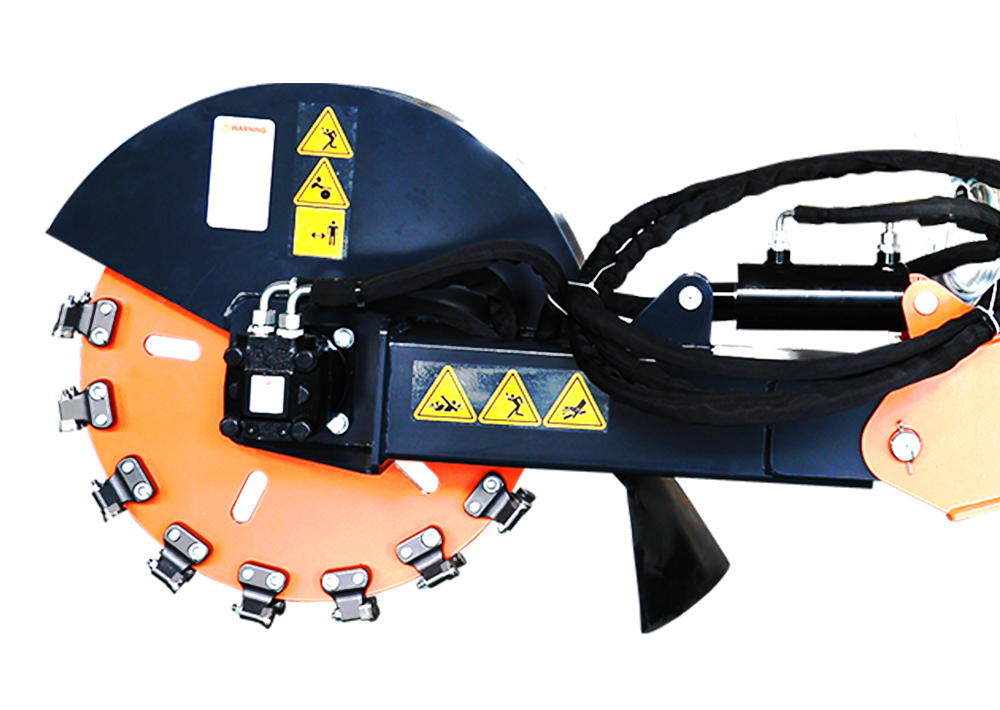

Stump Crusher

Model:XN-QC01-08

Features:

It adopts a high-strength wear-resistant steel cutting disc, equipped with a high-torque hydraulic motor and a built-in anti-splash guard. The angle can be adjusted in multiple directions, greatly improving operating efficiency.

Specification:

Overall Size: L69.5"x W 45.2"x H 31.5"
Depthof Cutter Disk: 14.2"
Swing Angle of Cutter Disk up and do: ±16°
Swing Angle of Cutter Disk from side to side: 50°
Width of Cutter Disk: 3"
Depth of Cutting: 8"
Hydraulic Flow Required: 20~32GPM
Hydraulic PSI Required: 3000 psi

Learn more
Trencher

Model:XN-KG01-48

Features:

High torque hydraulic motor for maximumdigging power
Used to excavate drains, lay water pipes，cables and other relatively soft soil

Specification:

Overall Size: L94"x W45"x H 26"
Trenching Depth:48"(1220mm)
Trenching Width: 8"(204mm)
Hydraulic Flow Required: 14~22GPM
Hydraulic PSI Required: 2000-3000 psi

Learn more
Disc Mulcher

Model:XN-PTJ-72

Features:

High-torque hydraulic drive, powerful cutting force, heavy-duty cutting blades, wear and impact resistance, high crushing efficiency, and uniform discharge.

Specification:

Overall Size: L66"x W71"x H 36"
Operating speed:800-1200 RPM
Working Width:63"
Cutter teeth quantity: 44
Hydraulic Flow Required: 32-44 GPM
Hydraulic PSI Required: 3000 psi

Learn more
Snow blower

Model:XN-CXJ-72

Features:

Large-diameter spiral auger + high-torque hydraulic snow-throwing fan. It completes snow gathering, conveying and snow throwing in one continuous process, featuring a long snow-throwing distance and adjustable discharge angle.

Specification:

Overall Size: L46.3"x W63.5"x H 59.7"
Working Width:72"
Auger Diametar:18"
Fan Diameter: 23"
Hydraulic Flow Required: 23-30 GPM
Hydraulic PSI Required: 3000 psi

Learn more
72-inch Drum Mulcher

Model:XN-THJ1-72

Features:

72-inch working width, equipped with a high-torque hydraulic motor and synchronous drive mechanism to deliver powerful cutting force, with quick-detach tool mounting design.

Specification:

Overall Size: L46.3"x W63.5"x H 59.7"
Working Width:72"
Working diameter:18"
Spindle speed: 2300 rpm
Number of cutter teeth：37
Hydraulic Flow Required: 20-32GPM
Hydraulic PSI Required: 3000 psi

Learn more
50-inch Drum Mower

Model:XN-THJ2-50

Features:

50-inch working width, equipped with a high-torque hydraulic motor and synchronous drive mechanism to deliver powerful cutting force, with quick-detach tool mounting design.

Specification:

Overall Size: L46.3"x W63.5"x H 59.7"
Working Width:50"
Working diameter:18"
Spindle speed: 2300 rpm
Number of cutter teeth：37
Hydraulic Flow Required: 17-30GPM
Hydraulic PSI Required: 3000 psi

Learn more
Material Crusher

Model:XN-PS01-72

Features:

It adopts a wide‑caliber trapezoidal feeding hopper and is equipped with a high‑torque hydraulic motor. The bottom sieve plate and crushing teeth are made of high‑strength wear‑resistant steel with a detachable and replaceable design.

Specification:

Overall Size: L32.3"x W72"x H 46"
Heaped Capacity: 13 cu ft
Width of Feed Port:72"
Size of Final Crushed Material:2"
Number of Crushing Teeth：35
Hydraulic Flow Required: 20~32GPM
Hydraulic PSI Required: 2000-3000 psi

Learn more
Double Cylinder Grab

Model:XN-ZD01-72

Features:

It can effectively grab materials with high density and heavy weight.

Specification:

Overall Size: L38.6"x W72"x H 30.7"
Heaped Capacity: 13 cu ft
Hydraulic Grapple Teeth: 2 Pieces
Height of Opening the Bucket: 18"
Hydraulic Flow Required: 5-20GPM
Hydraulic PSI Required: 2000-3000 psi

Learn more
Screening Hopper

Model:XN-SFD01-72

Features:

When using the screening bucket for the first time, 1.8 liters of gear oil must be added into the vibration box. It can quickly load materials without additional manual collection.

Specification:

Overall Size: L50"x W72"x H 30.8"
Working width: 72"
Size of Screening Mesh:1.6"
Capacity of Bucket:18 ft³
Rotating Speed:2000r/min
Hydraulic Flow Required: 15-20GPM
Hydraulic PSI Required: 2000-3000 psi

Learn more
Six-way Bulldozer

Model:XN-TT01-84

Features:

It can achieve six-directional movements including up-down, left-right, left-tilting and right-tilting, featuring wide applicability.

Specification:

Overall Size: L57.5"x W53.2"x H 35.4"
Swing Angle of Blade from side to side: ±30°
Swing Angle of Blade up and down:±10°
Hydraulic valve: l 2v selector Valive. I 6 GPM
Hydraulic Flow Required: 10-20GPM
Hydraulic PSI Required: 2000-3000 psi

Learn more
Concrete Mixer

Model:XN-JBQ01-250

Features:

The surface of the drum adopts a spike grid structure, and the drum is driven by a high-torque hydraulic motor, which can flexibly adapt to various working scenarios.

Specification:

Overall Size: L 34"x W 80.2"x H 33.8"
SizeofSieveGrid:3.5x3.5"
0verall Size of Side Discharge Chute: 9 -18
Diameter of Dis charge Port: 6.6"
Capacity of Bucket: 8.8 ft³
Hydraulic Flow Required: 15-20GPM
Hydraulic PSI Required: 3000 psi

Learn more
Oblique Sweeper

Model:XN-XJ01-72

Features:

It adopts a large-diameter roller cleaning brush, equipped with a high-torque hydraulic motor, supports angle adjustment, and is suitable for various operating environments.

Specification:

Overall Size: L 32.3"x W 72"x H 46"
SwingAngle: ±25°
Brush Size: φ 205x φ 660 mm
Specs of Brushes: 26"
Number of Brushes: 40
Hydraulic Flow Required: 15-20GPM
Hydraulic PSI Required: 3000 psi

Learn more
Sliding Tree Shears

Model:XN-SJ01-14

Features:

Equipped with a high-strength shear head driven by dual hydraulic cylinders, it provides strong shearing force. The arc-shaped auxiliary positioning structure is designed to firmly grip trees.

Specification:

Overall Size: L 44.5"x W 73.6"x H 58.6"
Diameter of Cutting Tree: 14"
Cylinder for Shear: 5"
Cylinder for Grapple: 2"
Hydraulic Flow Required: 15-25GPM
Hydraulic PSI Required: 3000 psi

Learn more
Close sweeper

Model:XN-FB01-72

Features:

It adopts a large‑diameter high‑strength roller brush driven by a high‑torque hydraulic motor. The main body is integrally welded with thickened high‑strength steel plate, featuring impact resistance and torsion resistance, and is not prone to deformation during long‑term heavy‑load operation.

Specification:

Overall Size: L 55"x W 82"x H 26"
Brush Size: φ 205 x φ 660 mm
Sweeping Width: 72"
Specs of Brushes: 26"
Number ofBrushes: 40
Hydraulic Flow Required: 15-20GPM
Hydraulic PSI Required: 3000 psi

Learn more
Hydraulic pallet fork

Model:XN-TPC01-48

Features:

High-strength wear-resistant forks, safe and durable under heavy loads, flexible operation in multiple scenarios, replacing traditional forklifts.

Specification:

Overall Size: L 57.5"x W 53.2"x H 35.4"
Length of Fork Tines: 48"
Bearing Capacity of Fork: 4000 Ibs
Adjustable Wiath Between Fork Tines: 8"- 44"
Hydraulic Flow Required: 5-15 GPM
Hydraulic PSI Required: 3000 psi

Learn more
Rotary Cultivator

Model:

Features:

Specification:

Learn more
Slip-to-agricultural Machinery Adapter

Model:XN-SPQ01-02

Features:

Specification:

Learn more
Brush Cutter

Model:XN-GG01-72

Features:

It adopts multi-edge hardened manganese steel blades with a high-strength protective structure, ensuring safety and durability. The low-maintenance design results in lower operating costs.

Specification:

Overall Size: L 82"x W 75.6"x H 24"
Working Width: 72"
Number ofBlades: 2
Thickness of double-edged cutter head: 3/5"
Hydraulic Flow Required: 20-25 GPM
Hydraulic PSI Required: 3000 psi

Learn more
Reciprocating Mower

Model:XN-GG02-72

Features:

Long-arm multi-joint design for a wide operating range. High-efficiency and wear-resistant trimming head ensures smooth and durable trimming. High-strength body with safety protection, sturdy and durable.

Specification:

Overall Size: L 22.5"x W 92"x H 82.5"
Length of Cutting Blade: 72"
Maximum Cutting Height: 175"
Maximum Cutting Width: 200"
Hydraulic Flow Required: 15-20 GPM
Hydraulic PSI Required: 3000 psi

Learn more
